Cordless Bluetooth 1D/2D barcode scanner with a charging presentation cradle, for fast scanning at and away from the counter.
1D & 2D Area ImagerBluetooth 4.0 CordlessPresentation CradleIP42 · 1.5 m drop3 Years Return to Base

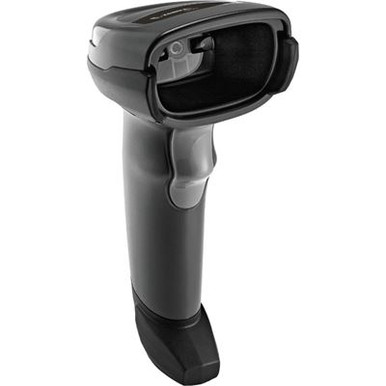

The Zebra DS2278 is a cordless 1D and 2D Bluetooth barcode scanner for retail, hospitality and light commercial point of sale. It reads barcodes quickly and accurately, including QR codes and codes shown on a phone screen, and connects by Bluetooth to its included presentation cradle so staff can scan away from the till or present items hands-free. Powered by Zebra's PRZM Intelligent Imaging and a 2400 mAh battery that lasts a full shift, it is supplied as a complete USB kit with a 3 year (36 month) Return to Base warranty.
Why choose the DS2278
Reads 1D and 2D Decodes QR, Data Matrix and PDF417 from paper, phones and screens, even damaged or poorly printed codes.
Cordless Bluetooth freedom Bluetooth 4.0 to the cradle lets staff scan bulky or hard-to-reach items away from the till.
Hands-free presentation cradle Sit it in the included cradle to present items hands-free; the cradle charges it with no separate power supply.
All-day battery A 2400 mAh battery gives up to 14 hours of scanning, and a fast charge of about one hour over Micro USB.
Built for the counter Withstands multiple 1.5 m drops to concrete and is IP42 sealed against dust and light spills.
3-year warranty Backed by a 36 month Return to Base warranty for long-term peace of mind.
14 hr
scanning per charge
IP42
dust & spill sealing
1.5 m
drop to concrete
3 yr
Return to Base
How it fits your workflow
Sit the DS2278 in its presentation cradle by the till and it stays charged and ready, presenting items hands-free. Lift it out to scan cordlessly over Bluetooth for bulky stock or hard-to-reach items. The cradle connects to your PC or POS over USB and behaves like a keyboard, so scans drop straight into your point-of-sale, web form or spreadsheet with no extra software.
Specifications
Brand
Zebra
Model
DS2278 (DS2200 Series)
SKU / MPN
SCZEDS2278SR7U2100PRW / DS2278-SR7U2100PRW
Scanner type
Cordless handheld 1D/2D area imager, with presentation cradle
Symbologies
1D, 2D (QR Code, Data Matrix, PDF417), paper and screen
Imaging
Zebra PRZM Intelligent Imaging, megapixel sensor
Radio
Bluetooth 4.0 (Classic and Low Energy)
Host connection
USB (cradle to PC or POS), HID keyboard-wedge
Battery
2400 mAh Li-ion, up to 14 hours
Charge time
Approx 1 hour via Micro USB, approx 4 hours in the cradle
Does the DS2278 read QR codes and barcodes on phone screens?
Yes. The DS2278 is a 2D area imager, so it reads 1D and 2D barcodes including QR Code, Data Matrix and PDF417, on paper and on a phone or monitor screen, such as mobile coupons, loyalty cards and e-tickets.
Is it cordless, and how do I pair it?
Yes, it is cordless over Bluetooth 4.0 and the cradle connects to your PC or POS by USB. To link it, scan the pairing barcode on the cradle. For a direct Bluetooth connection to a tablet or phone, the scanner supports Bluetooth HID and SPP. Full steps are in the Zebra quick start guide, or call our team on 1300 026 062.
What is the cradle for?
The included CR2278 presentation cradle charges the scanner and connects it to your computer or POS by USB. It also holds the scanner upright for hands-free presentation scanning, and it is powered by the USB host, so it needs no separate power supply.
How long does the battery last and how do I charge it?
The 2400 mAh battery delivers up to 14 hours of scanning, enough for a full shift. Charge it in about one hour by plugging a Micro USB cable straight into the scanner, or in about four hours by sitting it in the cradle between scans.
Will it work with my POS software?
In most cases, yes. Through the USB cradle the DS2278 presents as an HID keyboard-wedge, so it types scanned data straight into the active field and works with the majority of POS and inventory systems with no driver. For a direct Bluetooth link to an iPad or Android app, check the app supports Bluetooth HID. Confirm against your POS provider's supported-hardware list, or call us on 1300 026 062 before you buy.
What warranty does it come with?
The Zebra DS2278 is covered by a 36 month (3 year) Return to Base warranty.
Where it works best
Retail checkouts: cordless reach to scan products, loyalty cards and e-vouchers without dragging items across the counter.
Hospitality and click-and-collect: read mobile order QR codes and dockets straight from a customer's phone.
Warehouse and stockroom: walk to the shelf and scan bulky cartons, drop-resistant for busy floors.
Pop-up and mobile POS: pair to a tablet over Bluetooth for flexible, counter-free selling.
Building a checkout? Pair the DS2278 with a receipt printer to complete your point of sale.
The Zebra DS2278 (SKU SCZEDS2278SR7U2100PRW, MPN DS2278-SR7U2100PRW) is a cordless 1D/2D handheld barcode scanner kit with Bluetooth 4.0 and a USB presentation cradle, reading 1D, 2D, QR and on-screen codes with Zebra PRZM Intelligent Imaging. It runs up to 14 hours on a 2400 mAh battery, is rated for multiple 1.5 m drops to concrete, IP42 sealed, 214 g, and backed by a 36 month Return to Base warranty from POS Sales Australia. Order online or call 1300 026 062.
Brand: Zebra · Model: DS2278 · SKU: SCZEDS2278SR7U2100PRW · Type: Cordless handheld 1D/2D imager · Codes: 1D and 2D · Connectivity: Bluetooth 4.0 and USB cradle · Warranty: 36 Months Return to Base
