Multi-plane in-counter scanner-scale with a long platter and flange mount, built for longer belted lanes and high-volume produce.
QuadVision 1D & 2D Imaging15 kg Integrated ScaleScale SentryLong Platter · Flange MountPowered USB & RS-232
The Datalogic Magellan 9600i is a bi-optic (multi-plane) in-counter scanner-scale for high-volume supermarket, grocery and convenience checkouts. It combines QuadVision multi-camera 1D and 2D imaging with an integrated 15 kg weigh scale, so staff scan barcodes and weigh produce in a single motion at the point of sale. This configuration ships with a long platter, fixed produce rail, flange mount and dual display, in metric single-interval scale configuration with Scale Sentry to guard against under-weighing. Datalogic invented barcode scanning, and the 9600i is the next-generation platform that sets the standard for assisted and self-checkout.
Why choose the Magellan 9600i
QuadVision multi-camera imaging Four cameras (two horizontal, two vertical) on an IMX8 processor read 1D and 2D codes in any orientation, with up to 50% faster 2D reading than legacy scanners.
Integrated 15 kg scale Weigh produce and bulk items at the point of scan, with a 0.005 kg increment in metric single-interval configuration.
Scale Sentry An infrared beam watches the platter edges and flags produce hanging off the scale, preventing under-weighing and shrink at the checkout.
All-Weighs platter The weighing surface extends over the scanner bonnet, so oversized produce that overhangs the platter still weighs accurately.
Digital and AI ready GS1 Digital Link and Digimarc ready, with options for a Top Down Reader and AI at the checkout for loyalty and loss prevention.
Flexible integration Two powered USB host ports, a powered RS-232 port, remote scale display and EAS controller ports (Sensormatic, Interlock) fit existing checkout systems.
15 kg
scale capacity
4
QuadVision cameras
68 kg
max static weight
0.005 kg
minimum increment
How it fits your checkout
The long platter and flange mount make this configuration ideal for longer belted checkout lanes and high produce volumes, giving cashiers a larger weighing surface and more room to sweep items across the horizontal and vertical scan windows. Produce goes straight onto the scale to weigh and price without a separate device, and the dual display shows the weight to both operator and customer. It connects to your POS over powered RS-232 or USB, so it drops into most supermarket and grocery point-of-sale systems.
Specifications
Brand
Datalogic
Model
Magellan 9600i
SKU / MPN
SCDA96222320000065310 / SCDA96222320000065310
Type
Bi-optic (multi-plane) in-counter scanner-scale
Scan engine
Omni-directional area imager, QuadVision (IMX8, 4 cameras)
Symbologies
1D and 2D, GS1 Digital Link and Digimarc ready
Platter
Long
Produce rail
Fixed
Mount
Flange mount
Scale capacity
15 kg
Maximum static weight
68 kg
Minimum increment
0.005 kg (metric single interval)
Scale configuration
metric, dual display (operator and customer)
Vibration immunity
4 programmable filter settings
I/O ports
Powered USB Host Type A (x2), Powered RS-232, Remote Scale Display, EAS controller (Sensormatic, Interlock)
EAS
Yes (Electronic Article Surveillance ready)
Dimensions
Width 29.2 cm, depth below counter 10.2 cm, height above counter 13.4 cm
It is a bi-optic (multi-plane) in-counter scanner-scale. Two scan windows, horizontal and vertical, read 1D and 2D barcodes in any orientation, while an integrated 15 kg scale weighs produce and bulk items, so one device handles scanning and weighing at the checkout.
Does the 9600i weigh produce, and is it set up for Australia?
Yes. It has an integrated 15 kg scale with a 0.005 kg increment, supplied in metric single-interval configuration with a dual display for operator and customer. If you sell goods by weight (trade use), confirm the current trade-measurement and verification requirements with our team on 1300 026 062 before installation.
What is Scale Sentry?
Scale Sentry uses an invisible infrared beam to monitor the sides of the scale platter and detect produce that hangs over the edge, which would otherwise be under-weighed. It helps prevent lost revenue and shrink, and it is standard on every Magellan 9600i.

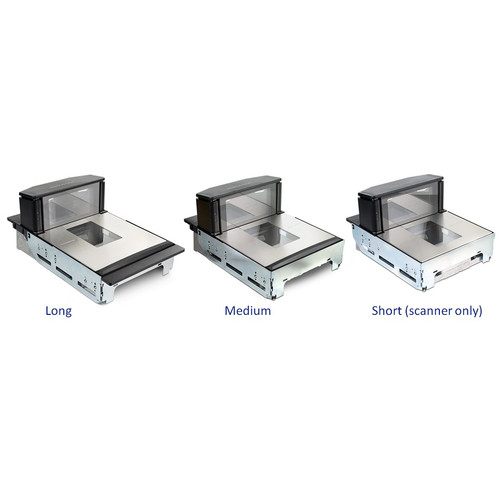

What is the difference between the long and medium platter versions?
This model has a long platter (43.7 cm) with a flange mount, suited to longer belted lanes and high-volume produce. The medium platter version (39.9 cm) uses a shelf mount for standard-depth checkouts. Both share the same imaging, 15 kg scale and Scale Sentry.
How does it connect to my POS system?
The Magellan 9600i provides a powered RS-232 port, two powered USB host ports and a remote scale display port. It integrates with most supermarket and grocery POS systems, but scale integration in particular depends on your POS software. Confirm compatibility with your POS provider or call us on 1300 026 062 before you buy.
What warranty does it include?
The Magellan 9600i comes with a 12 month Return to Base warranty. Extended Datalogic EASEOFCARE service plans are also available; call our team on 1300 026 062 for details.
Where it works best
Supermarkets and grocery: scan and weigh in one motion on busy, high-throughput lanes.
Greengrocers and produce: accurate produce weighing with Scale Sentry to protect margin.
Convenience and general retail: fast 1D and 2D reading, including codes on a phone screen.
Assisted and self-checkout: bi-optic scan performance for both staffed and self-service lanes.
Building a checkout lane? Add a receipt printer and cash drawer to complete your point of sale.
The Datalogic Magellan 9600i (SKU SCDA96222320000065310, MPN SCDA96222320000065310) is a bi-optic multi-plane in-counter scanner-scale for high-volume retail checkouts, pairing QuadVision 1D/2D area imaging (IMX8, four cameras, GS1 Digital Link and Digimarc ready) with an integrated 15 kg scale, 0.005 kg increment and Scale Sentry. This configuration has a long platter, fixed produce rail, flange mount and dual display in metric single-interval scale configuration, backed by a 12 month Return to Base warranty. Sold and supported by POS Sales Australia; order online or call 1300 026 062.
Brand: Datalogic · Model: Magellan 9600i · Type: Bi-optic in-counter scanner-scale · Scan: 1D/2D QuadVision imaging · Scale: 15 kg, 0.005 kg increment · Platter: Long, flange mount · Interface: RS-232 and USB · Warranty: 12 Months Return to Base
Form Factor: Omnidirectional
Form Factor: Handsfree
Scan Engine: 2D Area Imagers
Barcodes: 1D
Barcodes: 2D
