The Element 485 is a 15.1" all-in-one POS terminal: screen, computer and I/O in one die-cast aluminium enclosure, running off a single power lead. This is part number TTFLEL485033, the N95 build with 8GB DDR4, a 128GB M.2 SSD and Windows 11 IoT Enterprise pre-installed.
What separates a terminal like this from a tablet on a stand is the back panel. Three RJ48 serial ports, six USB, a USB-C, an RJ11 cash drawer trigger and RJ45 Ethernet mean the printer, scanner, scales, pinpad, drawer and customer display all plug straight in. No powered hub, no daisy chain, no mystery disconnection halfway through a Saturday trade.
Why a metal chassis matters
The 485 uses an aluminium die-cast housing. On a five year replacement cycle that decision shows up three ways. Heat leaves through the metal instead of through a vent that slowly fills with dust and grease. The bezel does not flex when a staff member leans a palm on it to steady themselves. And the surface takes a wipe-down several times a day without going chalky.
The glass is True Flat PCAP, which means the touch surface runs flush to the frame with no raised lip. In a cafe or a bakery that is the difference between wiping the screen and picking crumbs out of a groove. PCAP also gives you the multi-touch response staff already expect from a phone, rather than the press-and-wait feel of an older resistive panel.
Specifications
| Brand | Element |
| Model | 485 |
| Part number | TTFLEL485033 |
| Motherboard | G35 |
| Processor | Intel Alder Lake-N N95 |
| Memory | 1 x DDR4 8GB |
| Storage | 128GB M.2 SSD |
| Display | 15.1", 1024 x 768 |
| Touch technology | True Flat PCAP multi-touch |
| Operating system | Windows 11 IoT Enterprise (platform also supports Linux and Android 13.0) |
| Expansion | 1 x M.2 (E Key) |
| USB Type-A | 2 x USB 3.0, 4 x USB 2.0 |
| USB Type-C | 1 x USB 3.0 full-functioned (DP, PD 5V/3A and 12V/3A) |
| Serial ports | 3 x RJ48 standard RS232 (default 0V, selectable 5V or 12V) |
| LAN | 1 x RJ45 |
| Cash drawer | 1 x RJ11 |
| Video output | 2 x FeDP proprietary miniDP (1 main display, 1 second display) |
| DC jack | 1 x 4-pin with latch |
| Powered USB | Optional factory build only, not fitted to this STD model |
| Audio | 1 x 3W internal speaker |
| Wireless | 802.11 series and Bluetooth 5.0 (optional build) |
| Power adapter | 65W / 19V |
| Housing | Aluminium die-casting |
| Mounting | VESA 75 x 75 and 100 x 100 |
| Dimensions | 369 x 277 x 203 mm (14.2" x 10.9" x 8.0") |
| Weight | 4.3 kg |
| Operating temperature | 0°C to 35°C |
| Storage temperature | -20°C to 60°C |
| Humidity | 20% to 85% RH non-condensing |
| Compliance | FCC Class A, CE Mark Class A, LVD |
| Colour | Black |
| Warranty | 36 Months Return to Base |

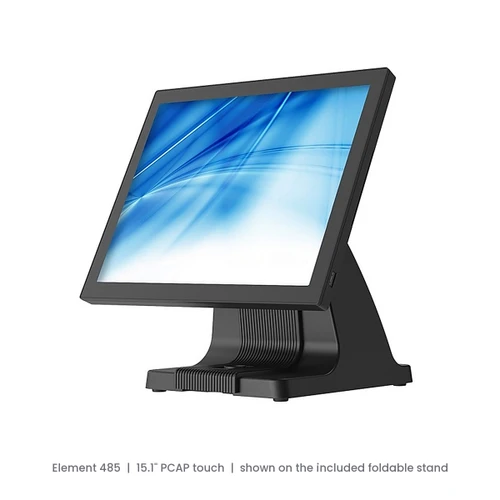

Supplied on its foldable desk stand. The stand shown in the images is included and fitted. If you would rather mount the terminal on an arm, wall plate or pole, it carries VESA 75 x 75 and 100 x 100 behind the back cover. Allow for 4.3 kg.
N95 or N97?
We carry the 485 in two Intel builds. Chassis, screen, ports, memory, storage and warranty are the same in both, so this comes down to processor headroom and price.
| | 485 N95 (this page) | 485 N97 |
| Part number | TTFLEL485033 | TTFLEL485028 |
| Processor | Intel Alder Lake-N N95 | Intel Alder Lake-N N97 |
| Max turbo | 3.40 GHz | 3.60 GHz |
| Everything else | Identical | Identical |
| Pick this one if | A normal till, kitchen or counter workload, and you would rather keep the money | You run heavier back-office work on the same machine |
In the box
- 1 x Element 485 15.1" all-in-one POS terminal, black
- 1 x foldable desk stand, fitted
- 1 x 65W / 19V power adapter and lead
- Windows 11 IoT Enterprise pre-installed
Frequently asked questions
What stand comes with it?
The foldable desk stand in the images, fitted and ready to go. It is fixed, faces the operator, and the screen angle adjusts on its hinge. To get the terminal off the counter, use the VESA 75 x 75 or 100 x 100 pattern behind the back cover with a monitor arm, wall plate or pole mount.
Will my serial printer, scales or pinpad still work?
Yes, and this is one of the better reasons to buy the 485. It carries three RJ48 RS232 serial ports, which most modern terminals have deleted entirely. They default to 0V and can be set to 5V or 12V for devices that take power from the port. You will need an RJ48 to DB9 cable for a standard serial plug, so tell us what is being connected on 1300 026 062 and we will send the right leads with it.
Has it got powered USB for a 24V printer?
Not this configuration. Powered USB at 12V and 24V is an optional factory build of the 485 and this STD model does not have it. If your printer needs it, call before ordering so we quote the powered USB build, which also ships with a 120W adapter rather than the standard 65W.
Can I put a customer display on it?
Yes. There is a dedicated second FeDP output for a customer-facing screen, plus USB for a small LCM pole display. We stock the matching Element 485 11.6" second display, and an 8.4" version as well.
Is the SSD upgradeable?
Yes, and easily. A service door on the rear cover opens onto the M.2 SSD, so a bigger drive is a counter-side swap rather than a full teardown. There is also a spare M.2 E Key slot. Memory is a single 8GB DDR4 module.
Will it wall mount or pole mount?
Yes. Both 75 x 75 and 100 x 100 VESA patterns sit behind the back cover, so the head can come off the desk stand onto a monitor arm, wall plate or pole. Allow for 4.3 kg when you pick the mount.
Is Wi-Fi included?
Wi-Fi and Bluetooth 5.0 are an optional build on the 485, not standard. This model networks over its RJ45 Ethernet port, which is the right answer for a fixed counter anyway since a till dropping off a wireless network mid-sale is a problem you do not want. A USB Wi-Fi adapter retrofits without fuss if you need one.
Not sure whether the N95 or the N97 build suits your setup, or which peripherals you need with it? Call 1300 026 062 or browse all All In One POS Terminals and POS Terminals.
Brand:
Element
Model:
485
Part Number:
TTFLEL485033
Motherboard:
G35
CPU:
Intel Alder Lake-N N95
RAM:
DDR4 8GB
Storage Device:
M.2 SSD 128GB
Display:
15.1-inch, 1024 x 768
Touch Technology:
True Flat PCAP Multi-touch
OS:
Windows 11 IoT Enterprise
USB Type-A 3.0:
2 x USB3.0
USB Type-A 2.0:
4 x USB2.0
USB Type-C:
1 x USB3.0 full-functioned (DP/PD 5V/3A, 12V/3A)
Serial Port:
3 x RJ48 (standard RS232, default 0V, selectable 5V/12V)
Video Output:
2 x FeDP proprietary miniDP
LAN:
1 x RJ45
Cash Drawer Port:
1 x RJ11
Powered USB:
Optional build, not fitted to this STD model
Audio:
1 x 3W internal speaker
Power Supply:
65W/19V power adaptor
Housing:
Aluminium die-casting
Mounting:
VESA 75 x 75 and 100 x 100
Dimensions:
369 x 277 x 203 mm
Weight:
4.3 kg
Operating Temperature:
0C to 35C
Compliance:
FCC Class A, CE Mark Class A, LVD
Colour:
Black
Included Stand:
Foldable desk stand
