Industrial Label Printer

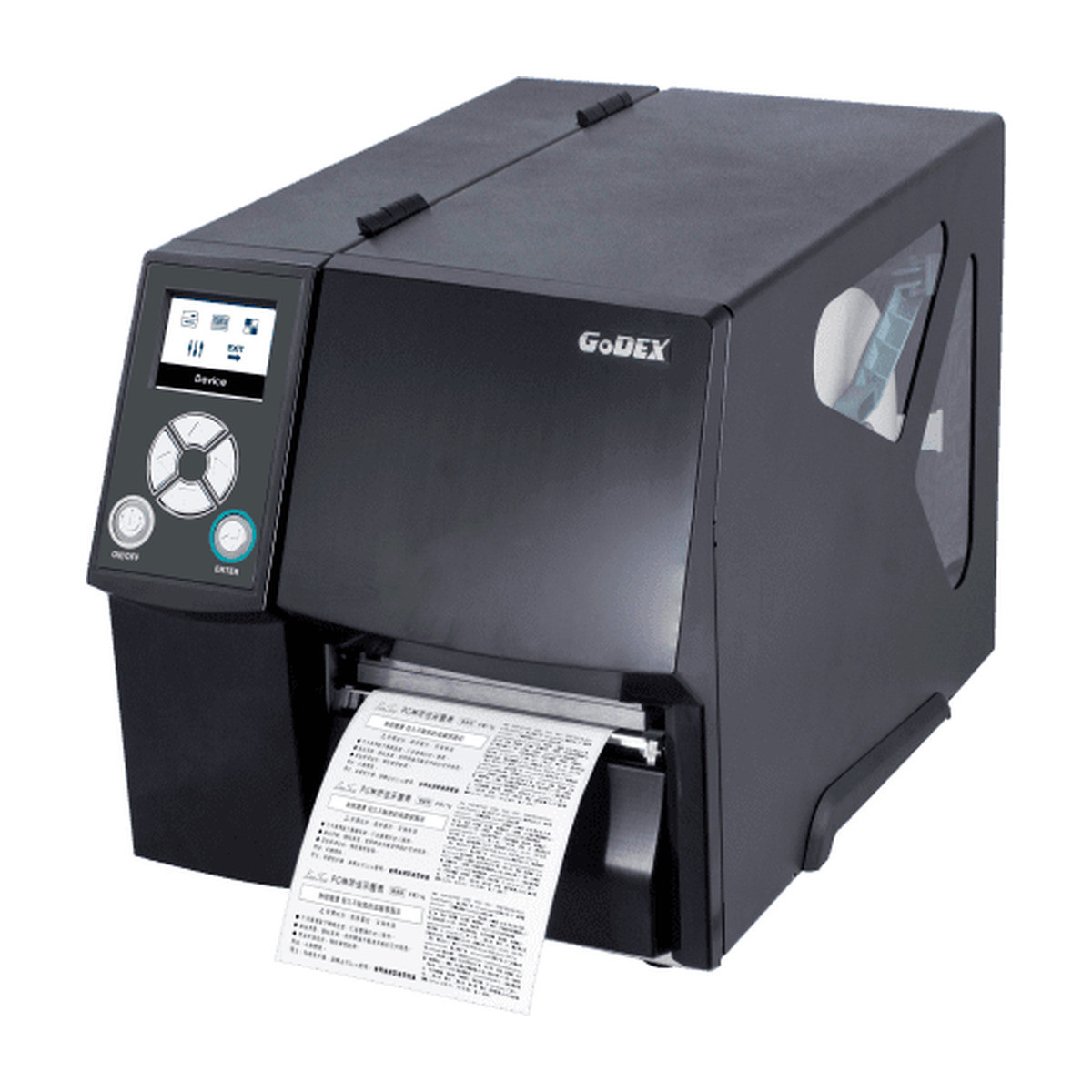

GoDEX ZX430i+ Light Compact Industrial Label Printer
300DPI Compact Robust 4" DT/TT Industrial Label Printer
300 dpiDT and TT5 IPS4.16" (105.7 mm)Ethernet
Innovating upon extensive customer feedback; GoDEX's most cost-effective and space-saving Industrial printers, the ZX400i+ series, integrates industrial utility with its high performance and exquisite design. The ZX400i+ series not only remains classic in its design, but also provides multiple outstanding features in this new model.
At a glance
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 IPS (127mm/s) |
| Print Width | 4.16" (105.7 mm) |
| Interface | Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB |
Why choose the GoDEX ZX430i+ Light Compact
Several interfaces as standardMultiple connectivity options
Auto calibration buttonAuto Calibration button
Full accessory rangeA full line of accessories
Easy ribbon and media loadingEasy ribbon/ media loading
Adjustable label sensorFull-range adjustable label sensor
Fast first label out32-bit CPU that offers fast "first label out" throughput
Where it fits
- Labels that have to last. Thermal transfer uses a ribbon, so the print does not fade with heat or light the way a direct thermal label does. That is what you want on asset tags, chemical labels and anything stored for months.
- Short life labels. Direct thermal needs no ribbon at all, which makes it the cheaper way to run shipping labels, pick tickets and anything read within weeks rather than years.
- Fitting an existing system. With the standard Godex languages emulation it can usually take the label formats your current software already sends, which matters more than the hardware when you are replacing a printer.
Full specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 IPS (127mm/s) |
| Print Width | 4.16" (105.7 mm) |
| Print Length | Min. 0.12" (3 mm)** to Max. 125.98" (3200 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash: 128 MB SDRAM: 128 MB |
| Interface | Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps |
| Ribbon | Types : Wax, wax / resin, resin Length : Max. 1476' (450 m) Width : 1.18" Min. - 4.33" (30 mm - 110 mm) Max. Ribbon Roll Diameter : 3" (76.2 mm) Core Diameter : 1" (25.4 mm) |
| Media | Types : Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Min. 1" (25.4 mm) - Max. 4.64" (118 mm) Thickness : Min. 0.0024" (0.06 mm) - Max. 0.01" (0.25 mm) Label Roll Diameter : Max. 8" (203.2 mm) with 3" (76.2 mm) core Max. 6" (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core Diameter : Min. 1 " (25.4 mm) - Max. 3" (76.2 mm) |
| Languages (auto switching) | EZPL, GEPL, GZPL, GDPL (Godex, Eltron, Zebra, and Datamax) |
| Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001) 0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Codepages | CODEPAGE 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16) |
| Barcodes | 1-D Bar codes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 and 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 and 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode 2-D Bar codes: Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417 |
| RTC (Real Time Clock) | Standard |
| Control Panel | Color TFT LCD with navigation button Power on/standby button with green color LED backlight Calibration button at rear panel Control key : FEED / PAUSE / CANCEL with dual color LED Backlight: Ready (Green); Error (Red) |
| Options | Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) BT (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install) External label unwinder |
Before you order
- Measure your label. The print width in the specifications is the hard limit. Check your label stock against it, and check the core size your rolls are wound on, before the printer arrives.
- Check the software. This printer speaks the Godex languages. If you are replacing an existing printer, those emulations are usually what lets your current label formats keep working.
- Think about the consumables. The label and ribbon cost outruns the printer cost quickly. Tell us what you are printing and we will quote the stock alongside the hardware.
In the box
- GoDEX ZX430i+ label printer
- Power supply and lead
- USB cable
- GoLabel label design software
- Quick start guide
Frequently asked questions
Does it need a ribbon?
Only in thermal transfer mode. This printer does both: direct thermal needs no ribbon and prints onto heat sensitive label stock, while thermal transfer uses a ribbon to lay ink onto the label. Direct thermal is cheaper to run and fades over months, thermal transfer costs more per label and lasts. Choose per job, the printer does not care.
What does 300 dpi (12 dots/mm) actually mean for my labels?
Resolution is how many dots the head lays down per inch. 300 dpi (12 dots/mm) is the working figure for this model. Higher resolution matters when you are printing small text, fine logos or dense 2D barcodes onto small labels. For plain product and shipping labels the lower resolutions are usually sharper than they need to be already.
How fast is it and how wide can the label be?
Godex rates it at Up to 5 IPS (127mm/s) with a maximum print width of 4.16" (105.7 mm). The width is the limit on the label itself: anything wider than that cannot be filled edge to edge, so measure your label stock against that figure before ordering.
How does it connect?
As standard it offers Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps. Tell us how the printer will sit on your network when you order and we will confirm you have the right build.
Is label design software included?
Godex supplies its GoLabel design software at no extra cost, which is enough to lay out and print labels without buying a third party package. If you already use a labelling or ERP system you will more likely drive the printer from that instead, through the language emulations listed in the specifications.
Who do I talk to about support?
POS Sales on 1300 026 062. We stock the Godex consumables and spare parts for this range, including print heads and platen rollers, so a worn head does not mean a new printer.
Can I see a sample label before I commit?
Call us on 1300 026 062. Choosing between resolutions and between direct thermal and thermal transfer is much easier against a printed sample of your own artwork than against a specification sheet.
The GoDEX ZX430i+ is a Godex label printer supplied by POS Sales. Key specifications: print method Thermal Transfer / Direct Thermal; resolution 300 dpi (12 dots/mm); print speed Up to 5 IPS (127mm/s); print width 4.16" (105.7 mm); print length Min. 0.12" (3 mm)** to Max. 125.98" (3200 mm); processor 32-bit RISC CPU; memory Flash: 128 MB SDRAM: 128 MB; interface Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps. GoLabel label design software is included by Godex at no extra cost, and POS Sales stocks the matching Godex consumables, upgrade kits and spare parts in Australia. Sold in Australia by POS Sales, 1300 026 062.
Supplied and supported in Australia by POS Sales, 1300 026 062. See the full label printer range.
Print Method:
Thermal Transfer / Direct Thermal
Resolution:
300 dpi (12 dots/mm)
Print Speed:
Up to 5 IPS (127mm/s)
Print Width:
4.16" (105.7 mm)
Print Length:
Min. 0.12" (3 mm)** to Max. 125.98" (3200 mm)
Processor:
32-bit RISC CPU
Memory:
Flash: 128 MB SDRAM: 128 MB
Interface:
Serial port: RS-232 (DB-9) USB 2.0 Device port (Type B) USB Host port (Type A) Ethernet 10/100 Mbps
Ribbon:
Types : Wax, wax / resin, resin Length : Max. 1476' (450 m) Width : 1.18" Min. - 4.33" (30 mm - 110 mm) Max. Ribbon Roll Diameter : 3" (76.2 mm) Core Diameter : 1" (25.4 mm)
Media:
Types : Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Min. 1" (25.4 mm) - Max. 4.64" (118 mm) Thickness : Min. 0.0024" (0.06 mm) - Max. 0.01" (0.25 mm) Label Roll Diameter :
Languages (auto switching):
EZPL, GEPL, GZPL, GDPL (Godex, Eltron, Zebra, and Datamax)
Resident Fonts:
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270°
Download Fonts:
Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001) 0°, 90°, 180°, 270° rotatable and 8 ti
Codepages:
CODEPAGE 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode (UTF8, UTF16)
Barcodes:
1-D Bar codes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 and 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5)
RTC (Real Time Clock):
Standard
Control Panel:
Color TFT LCD with navigation button Power on/standby button with green color LED backlight Calibration button at rear panel Control key : FEED / PAUSE / CANCEL with dual color LED Backlight: Ready (Green); Error (Red)
Options:
Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) BT (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install) External label unwinder
