Industrial Label Printer

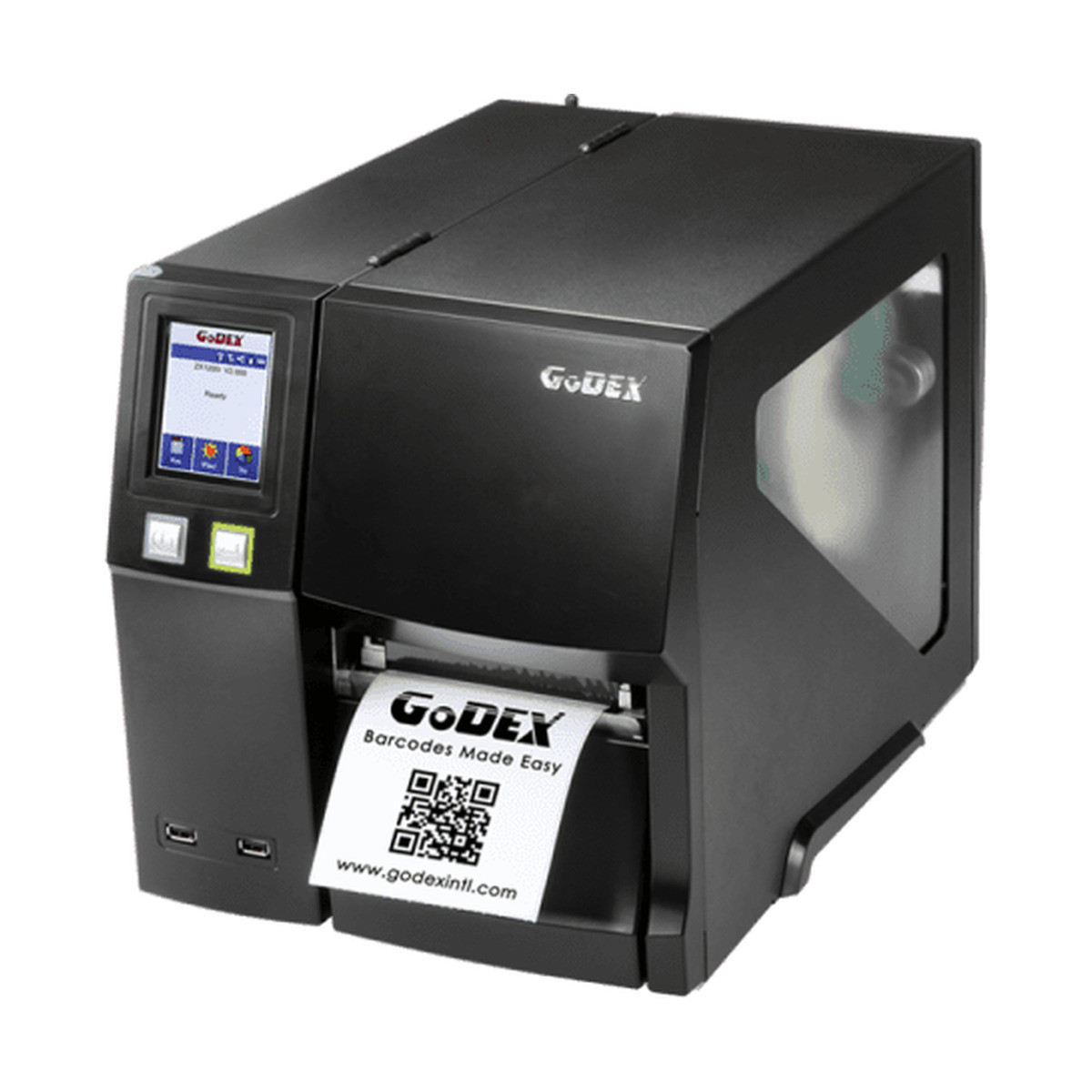

GoDEX ZX1300Xi Industrial Label Printer
High Speed (10 IPS) 300 DPI Industrial Label Printer - Ethernet/USB/Serial w/ USB Hub
300 dpiDT and TT10 IPS4.09" (104 mm)Ethernet
At a glance
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 10 IPS (254 mm/s) |
| Print Width | 4.09" (104 mm) |
| Interface | USB 2.0 RS-232 ( DB-9) Ethernet (RJ45) IEEE 802.3 10/100 Bas |
Why choose the GoDEX ZX1300Xi
Touch screen controlLarge intuitive touch screen LCD allows the user to be in control.
Three USB host portsThree USB host ports standard allows integration with several input and storage devices devices at one time
Built for volumeHigh performance printer designed for high volume applications
Up to 10 ipsUp to 10 ips print speed
300 dpi print head300DPI printer head
300 dpi print headPrints at 300 dpi (12 dots/mm), which sets how fine the text, the barcodes and any logo on the label can be.
Where it fits
- Labels that have to last. Thermal transfer uses a ribbon, so the print does not fade with heat or light the way a direct thermal label does. That is what you want on asset tags, chemical labels and anything stored for months.
- Short life labels. Direct thermal needs no ribbon at all, which makes it the cheaper way to run shipping labels, pick tickets and anything read within weeks rather than years.
- Fitting an existing system. With the standard Godex languages emulation it can usually take the label formats your current software already sends, which matters more than the hardware when you are replacing a printer.
Full specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 10 IPS (254 mm/s) |
| Print Width | 4.09" (104 mm) |
| Print Length | Min. 0.16" (4 mm)** - Max. 85" (2159 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash: 128 MB Flash (60 MB for user storage) SDRAM: 32 MB |
| Interface | USB 2.0 RS-232 ( DB-9) Ethernet (RJ45) IEEE 802.3 10/100 Base-Tx USB Host (x2 Front and x1 Rear) |
| Ribbon | Length: 450 m Width: 30 mm Min - 110 mm Max Core diameter: 25.4 mm |
| Control Panel | Backlight 3.2" touch screen LCD 1 power on/standby button with green colour LED backlight 1 control key: FEED / PAUSE / CANCEL with dual colour LED back-light: Ready (Green); Error (Red) 1 calibration button at rear panel |
Before you order
- Measure your label. The print width in the specifications is the hard limit. Check your label stock against it, and check the core size your rolls are wound on, before the printer arrives.
- Check the software. This printer speaks the Godex languages. If you are replacing an existing printer, those emulations are usually what lets your current label formats keep working.
- Think about the consumables. The label and ribbon cost outruns the printer cost quickly. Tell us what you are printing and we will quote the stock alongside the hardware.
In the box
- GoDEX ZX1300Xi label printer
- Power supply and lead
- USB cable
- GoLabel label design software
- Quick start guide
Frequently asked questions
Does it need a ribbon?
Only in thermal transfer mode. This printer does both: direct thermal needs no ribbon and prints onto heat sensitive label stock, while thermal transfer uses a ribbon to lay ink onto the label. Direct thermal is cheaper to run and fades over months, thermal transfer costs more per label and lasts. Choose per job, the printer does not care.
What does 300 dpi (12 dots/mm) actually mean for my labels?
Resolution is how many dots the head lays down per inch. 300 dpi (12 dots/mm) is the working figure for this model. Higher resolution matters when you are printing small text, fine logos or dense 2D barcodes onto small labels. For plain product and shipping labels the lower resolutions are usually sharper than they need to be already.
How fast is it and how wide can the label be?
Godex rates it at Up to 10 IPS (254 mm/s) with a maximum print width of 4.09" (104 mm). The width is the limit on the label itself: anything wider than that cannot be filled edge to edge, so measure your label stock against that figure before ordering.
How does it connect?
As standard it offers USB 2.0 RS-232 ( DB-9) Ethernet (RJ45) IEEE 802.3 10/100 Base-Tx USB Host (x2 Front and x1 Rear). Tell us how the printer will sit on your network when you order and we will confirm you have the right build.
Is label design software included?
Godex supplies its GoLabel design software at no extra cost, which is enough to lay out and print labels without buying a third party package. If you already use a labelling or ERP system you will more likely drive the printer from that instead, through the language emulations listed in the specifications.
Who do I talk to about support?
POS Sales on 1300 026 062. We stock the Godex consumables and spare parts for this range, including print heads and platen rollers, so a worn head does not mean a new printer.
Can I see a sample label before I commit?
Call us on 1300 026 062. Choosing between resolutions and between direct thermal and thermal transfer is much easier against a printed sample of your own artwork than against a specification sheet.
The GoDEX ZX1300Xi is a Godex label printer supplied by POS Sales. Key specifications: print method Thermal Transfer / Direct Thermal; resolution 300 dpi (12 dots/mm); print speed Up to 10 IPS (254 mm/s); print width 4.09" (104 mm); print length Min. 0.16" (4 mm)** - Max. 85" (2159 mm); processor 32-bit RISC CPU; memory Flash: 128 MB Flash (60 MB for user storage) SDRAM: 32 MB; interface USB 2.0 RS-232 ( DB-9) Ethernet (RJ45) IEEE 802.3 10/100 Base-Tx USB Host (x2 Front and x1 Rear). GoLabel label design software is included by Godex at no extra cost, and POS Sales stocks the matching Godex consumables, upgrade kits and spare parts in Australia. Sold in Australia by POS Sales, 1300 026 062.
Supplied and supported in Australia by POS Sales, 1300 026 062. See the full label printer range.
Print Method:
Thermal Transfer / Direct Thermal
Resolution:
300 dpi (12 dots/mm)
Print Speed:
Up to 10 IPS (254 mm/s)
Print Width:
4.09" (104 mm)
Print Length:
Min. 0.16" (4 mm)** - Max. 85" (2159 mm)
Processor:
32-bit RISC CPU
Memory:
Flash: 128 MB Flash (60 MB for user storage) SDRAM: 32 MB
Interface:
USB 2.0 RS-232 ( DB-9) Ethernet (RJ45) IEEE 802.3 10/100 Base-Tx USB Host (x2 Front and x1 Rear)
Ribbon:
Length: 450 m Width: 30 mm Min - 110 mm Max Core diameter: 25.4 mm
Control Panel:
Backlight 3.2" touch screen LCD 1 power on/standby button with green colour LED backlight 1 control key: FEED / PAUSE / CANCEL with dual colour LED back-light: Ready (Green); Error (Red) 1 calibration button at rear panel
