A 15 inch Windows touch terminal with a 10.1 inch customer screen fitted on the back, so the person paying can follow the sale without a separate monitor on your counter.
15 inch PCAP, 1024 x 76810.1 inch rear displayIntel N97 fanless8GB / 120GB SSDWindows 11 IoT Enterprise included24 Months Return to Base

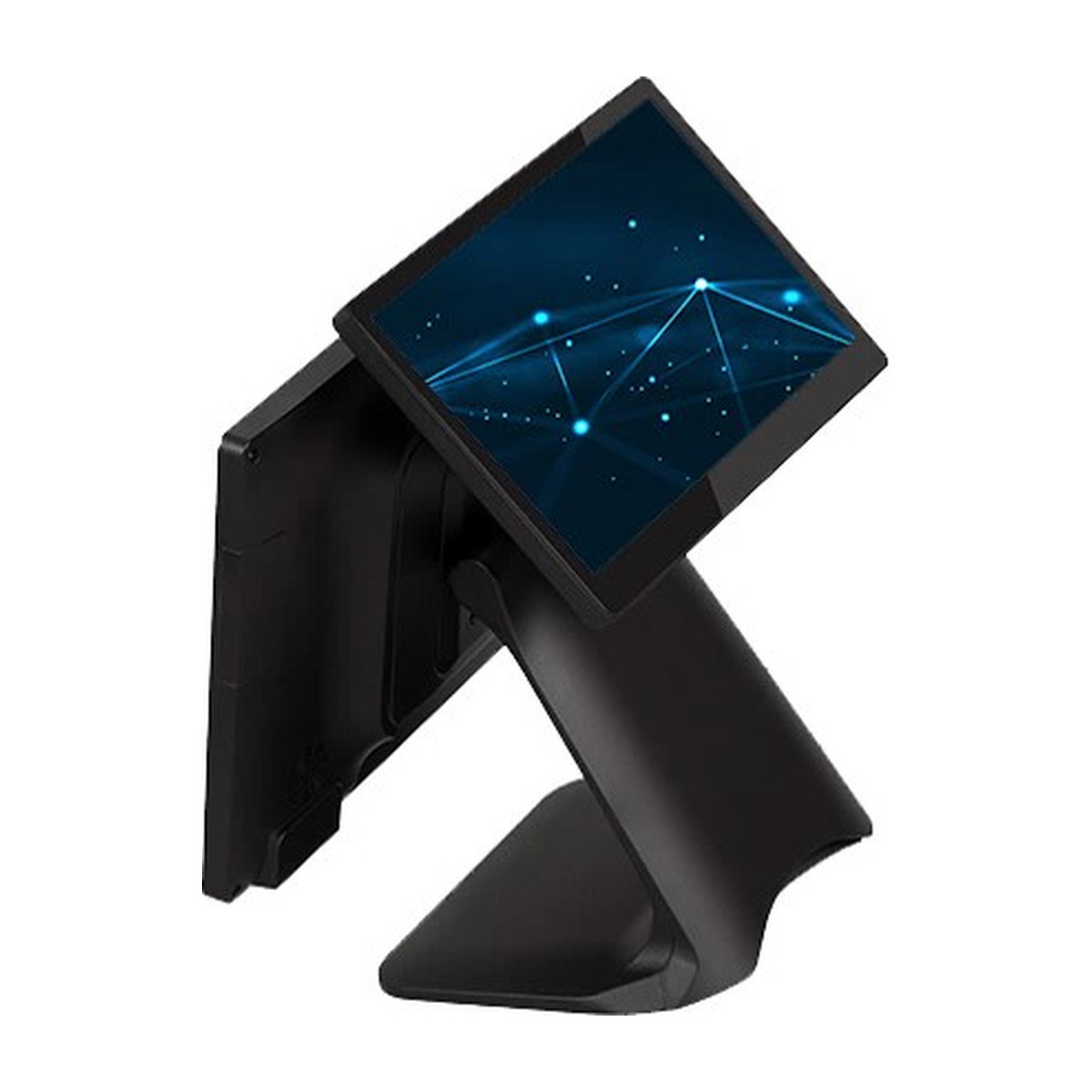

The Nexa NP-1653+ Dual Display, part number NP1653+DD, is an all in one Windows POS terminal carrying two screens on one chassis. Your staff work on a 15 inch 4:3 projected capacitive touch panel running at 1024 x 768. Facing the other way, across the counter, a 10.1 inch LCD shows the customer what is being rung up. Both are driven by a single fanless Intel N97 quad core processor with 8GB of DDR4 memory and a 120GB SSD, and the terminal arrives with Windows 11 IoT Enterprise already installed and licensed.
Buying this costs less than building it
POS Sales sells the pieces separately too, so the arithmetic is easy to check. The Nexa NP-1653+ terminal is $1,259 and the Nexa NP-1653 10.1 inch customer display is $319, which comes to $1,578. This dual display build is $1,499, arrives already assembled and cabled, and gives your bookkeeper one asset and one serial number rather than two. If you are fitting out more than one till, that difference compounds.
Why choose the dual display build
The display is already on itThis is the NP-1653+ with the 10.1 inch customer screen fitted at the factory, not a terminal with a monitor added afterwards. One chassis, one power lead, one part number.
Cheaper than buying the twoAt $1,499 the dual display build undercuts the NP-1653+ at $1,259 plus the NP-1653 10.1 inch customer display at $319, and it arrives assembled.
1024 x 768 capacitive frontThe operator works on a 15 inch 4:3 TFT panel with projected capacitive touch, the same glass-over-sensor technology used on a phone, so it reads a light touch and ignores a sleeve.
Silent, with no fan to clogThe Intel N97 quad core runs to 3.60GHz without a fan. Nexa rates it nearly 50 percent quicker than the previous generation of this terminal.
Six USB and two serialFour USB 2.0, two USB 3.0, two COM ports, gigabit Ethernet, VGA and an RJ11/12 drawer jack, so a printer, scanner, drawer, scale and pin pad all have somewhere to go.
24 month cover, onsite availableA 24 Months Return to Base warranty as standard, with a 3 year onsite upgrade available for sites that cannot send a terminal away.
What the customer screen changes
A customer who can see the screen asks fewer questions. Line items appear as they are scanned, so a wrong price or a double scan gets caught in the moment instead of at the total, and the person waiting has something to look at other than the back of your monitor. It also gives you somewhere to put the prompts that otherwise interrupt a transaction: loyalty sign ups, email receipts, tipping, charity round ups. Between sales the panel is a 10.1 inch advertising space at eye level on the counter, which is worth more than it sounds in a shop where most customers queue for a minute or two. None of this needs a second power point, a bracket or a video lead, because the display is part of the terminal.
Specifications
Brand
Nexa
Model
NP-1653+ Dual Display
SKU
NP1653+DD
Terminal type
All in one Windows touch POS terminal with a factory fitted rear customer display
Main display
15 inch 4:3 TFT LCD, 1024 x 768, projected capacitive touch
Second display
10.1 inch rear LCD, customer facing, no touch layer
CPU
Intel N97 quad core, up to 3.60GHz, fanless
RAM
8GB DDR4 as stocked, platform supports 8GB to 16GB
Storage
120GB SSD as stocked, platform supports 128GB to 1TB, drive is user accessible
Operating system
Windows 11 IoT Enterprise, preloaded and included in the price. The platform also runs Linux.
USB
4 x USB 2.0 and 2 x USB 3.0
Serial
2 x COM
LAN
RJ-45 10/100/1000Mbps
Other connections
Audio out, VGA DB-15, DC jack 12V, RJ11/12 cash drawer port
Power
Input AC 100-240V 3.5A, output DC 12V 5A
Size
356 W x 346 H x 222 D mm, terminal only, not counting the rear display
Weight
4.3 kg net, terminal only, not counting the rear display
Operating range
0 C to 40 C, storage -40 C to 50 C
Case
Slimline aluminium and metal, fanless
Mounting

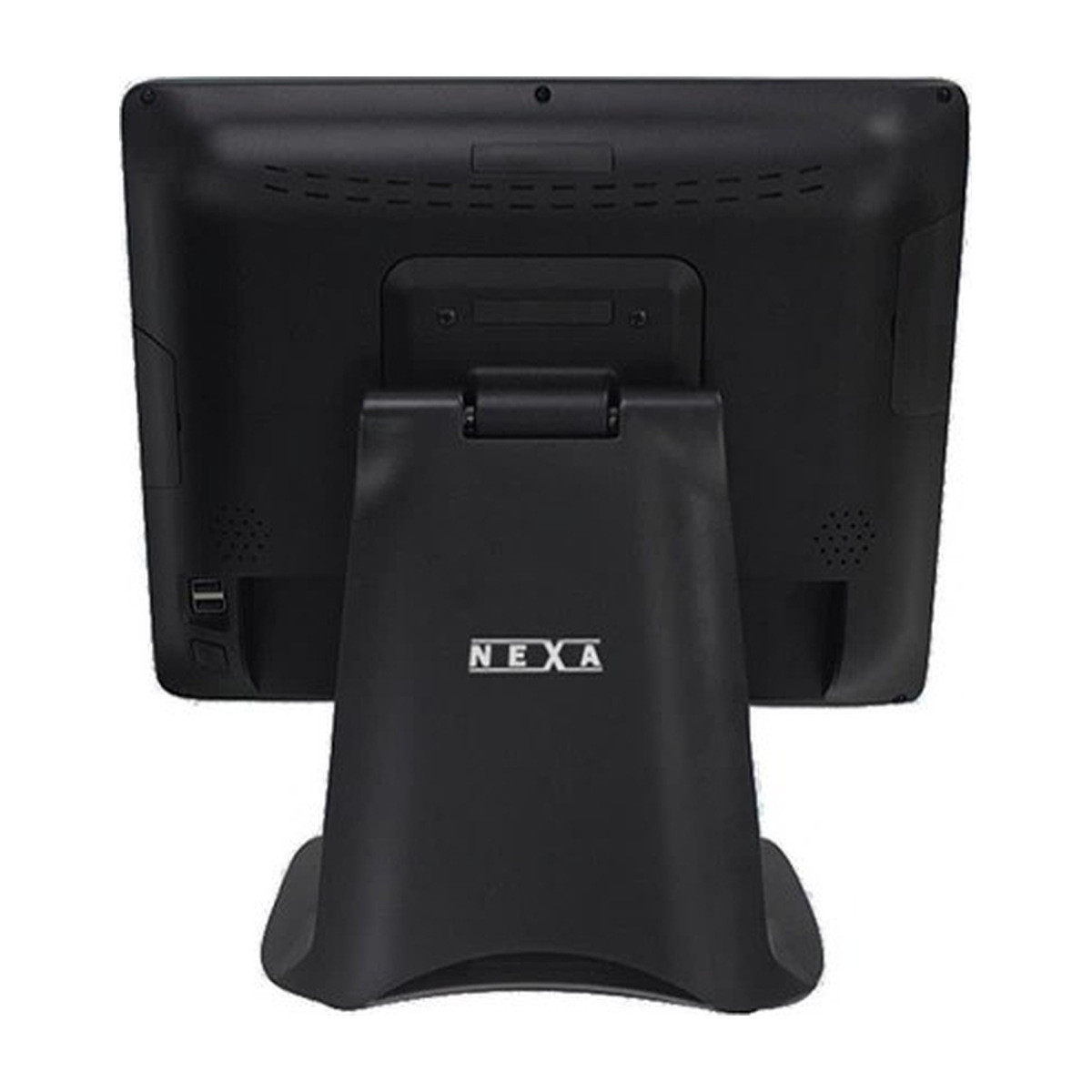

Removable base with VESA support for wall or pole mounting
Build options
MSR with i-Button Dallas key combo, RFID, Wi-Fi, 2 x 20 VFD or LCD pole display, Intel Core i3 or i5, wall mount
Colour
Black
Condition
New
Warranty
24 Months Return to Base, 3 year onsite upgrade available
How it compares
Terminal
Screens
Processor
Best for
Nexa NP-1653+ Dual Display (this terminal)
15 inch touch plus a 10.1 inch customer display, fitted
Intel N97 quad core, fanless
Counters that want the customer to see the sale, bought as one assembled unit
Sites running heavier software, several applications at once or a back office load on the same machine
What is in the box
Nexa NP-1653+ terminal with the 15 inch touch screen and the 10.1 inch rear customer display fitted
Removable weighted stand
Power supply and mains lead
Windows 11 IoT Enterprise, preloaded and licensed
Frequently asked questions
How is this different from the standard Nexa NP-1653+?
The hardware underneath is the same terminal: same 15 inch capacitive screen, same Intel N97, same 8GB and 120GB SSD, same ports and same case. The difference is that this part number has the 10.1 inch customer display mounted on the back and wired in from the factory. The standard NP-1653+ lists that display as an option, so on that model you specify it at build time or go without.
Is it cheaper to buy this or to add the display to a standard terminal?
This one. The NP-1653+ on its own is $1,259 and the NP-1653 10.1 inch customer display is $319, which is $1,578 for the pair, against $1,499 for the dual display build. You also avoid mounting and cabling the display yourself, and you have one part number to quote on a service call instead of two.
What resolution are the screens?
The operator panel is a 15 inch 4:3 TFT at 1024 x 768 with projected capacitive touch. The brochure does not publish a resolution for the 10.1 inch rear panel, so we are not going to quote one. It is sized for line items, totals and a promotional image rather than for detailed work.
Does the customer display accept touch input?
No. Nexa specifies the 10.1 inch second display as an LCD without touch. Everything is entered on the front screen by your staff, which is usually what you want on a customer facing panel anyway.
Is it noisy on a quiet counter?
No, because there is no fan in it. The Intel N97 is cooled passively, which also means there is no intake pulling airborne dust, flour or hair spray through the electronics. That matters in bakeries, salons and anywhere the air is not clean.
How many peripherals can I run from it?
Six USB ports, two of them USB 3.0, plus two serial ports, gigabit Ethernet, VGA and a powered RJ11/12 cash drawer port. A typical counter uses one USB for the printer, one for the scanner, one for the pin pad and the drawer port for the till, which leaves room to spare.
Can I run Linux on it instead of Windows?
The platform supports it. Nexa lists Windows 11 IoT Enterprise LTSB or Linux for the NP-1653+. The unit we stock is supplied with Windows 11 IoT Enterprise preloaded and licensed in the price, so moving to Linux means reimaging it yourself and you lose the value of the included licence.
How big and heavy is it?
The terminal is 356 mm wide, 346 mm high and 222 mm deep and weighs 4.3 kg net. Those are Nexa's figures for the terminal itself. The rear display adds to the height and the shipped weight, so allow a margin when you are measuring a tight counter.
What does the warranty cover and can it be extended?
It comes with 24 Months Return to Base, meaning a faulty unit is returned to us for assessment and repair or replacement. Nexa also offers a 3 year onsite warranty covering most areas, which is worth considering for a single till site that cannot operate with the terminal away. Call POS Sales on 1300 026 062 and we will check whether your address is covered.
Application use cases
Cafes and quick service where the customer sees the order building as it is entered and corrections happen before the coffee is made rather than after.
Pharmacy and health retail where showing the price of each item as it is scanned heads off disputes at the end of a basket.
Bottle shops and convenience running promotions on the rear screen between sales instead of paying for a separate advertising display.
Salons and clinics where a fanless terminal keeps dust and product overspray out of the electronics and makes no noise in a quiet room.
Single till sites that want the customer facing display without the cabling, the bracket and the second power point a standalone monitor needs.
Multi site rollouts standardising on one part number, with Windows 11 IoT Enterprise already licensed and imaged on every unit that lands.
Fitting out the whole counter? Add a receipt printer and a cash drawer.
The Nexa NP-1653+ Dual Display (SKU NP1653+DD) is a black all in one Windows POS terminal with a 15 inch 4:3 projected capacitive touch screen at 1024 x 768 for the operator and a factory fitted 10.1 inch non touch LCD on the rear for the customer. It runs a fanless Intel N97 quad core processor to 3.60GHz with 8GB DDR4 and a user accessible 120GB SSD, and is supplied with Windows 11 IoT Enterprise preloaded and licensed in the price. Ports are 4 x USB 2.0, 2 x USB 3.0, 2 x serial, RJ-45 gigabit Ethernet, VGA DB-15, audio and an RJ11/12 cash drawer jack, with a 100-240V supply delivering DC 12V 5A. The terminal measures 356 x 346 x 222 mm and weighs 4.3 kg net excluding the rear display, is built in slimline aluminium and metal, operates from 0 C to 40 C and lifts off its base for VESA wall or pole mounting. MSR, RFID, Wi-Fi and Intel Core i3 or i5 builds are available as factory options. Covered by a 24 Months Return to Base warranty with a 3 year onsite upgrade available. In stock at POS Sales Australia with delivery Australia-wide, or call 1300 026 062 to check it against your POS software.
Brand: Nexa · Model: NP-1653+ Dual Display · SKU: NP1653+DD · Type: All in one dual display POS terminal · Main screen: 15 inch PCAP 1024 x 768 · Second screen: 10.1 inch rear LCD · CPU: Intel N97 quad core · RAM: 8GB · Storage: 120GB SSD · OS: Windows 11 IoT Enterprise · Cooling: Fanless · Colour: Black · Warranty: 24 Months Return to Base · Retailer: POS Sales Australia
