Entry-level 80mm thermal receipt printer

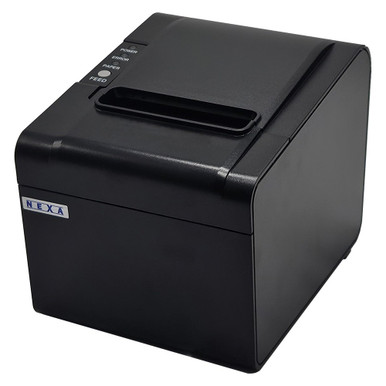

Nexa PX610II Thermal Receipt Printer
250 mm/s printing, with USB, serial and Ethernet all fitted as standard.
250 mm/s203 dpiUSB + Serial + Ethernet80 mm paper150 km print head1.5M cut auto-cutter24 Months Return to Base
Nexa built the PX610II to a price, and they were sensible about where the money went. You get 250 mm per second at 203 dpi, a 150 km print head and a cutter rated to 1.5 million cuts. All three interfaces are fitted at the factory, so there is no card to add later and no USB-only variant to trip over. Paper drops in from the top. There is a 24V drawer port on the back for your cash drawer, and it speaks ESC/POS like every other receipt printer your POS has dealt with. Two year warranty.
What you get
250 mm per secondReceipts print and cut before most customers have put their card away.
All three interfaces, fittedUSB, RS232 serial and Ethernet, standard. Plug it into the till, hang it off the network so a second terminal can use it, or run it on serial if you are keeping an older system alive. Nothing extra to buy.
150 km print headThis is the number to check on a cheap printer, because the head is usually what goes first. Plenty of printers around this money are rated at 100 km.
Cutter rated to 1.5 million cutsThree hundred dockets a day would take you past a decade.
Paper drops straight inLid up, roll in, lid down. No threading, and it cannot go in the wrong way round, so anyone on shift can change it mid-service.
ESC/POSThe standard receipt printer command set. If your POS already drives a thermal printer, it will almost certainly drive this one.
1.5M
Cuts from the auto-cutter
Size and ports
What is on the back
It measures 191 mm wide, 140 deep and 143 tall. The lid lifts for the roll, and there is a feed button and three status lights on top. The back panel carries USB, a DB9 serial socket, Ethernet, a 24V RJ11 / RJ12 drawer port and the DC input for the supplied adapter. All of that is standard on every PX610II, so there is no cut-down version of this model to end up with by mistake. The parts that wear are the print head, rated at 150 km of paper, and the guillotine, rated to 1.5 million cuts.
Full specifications
| Brand | Nexa |
| Model | PX610II (PX-610II) |
| Print method | Direct thermal |
| Print speed | 250 mm per second |
| Print resolution | 203 dpi |
| Effective print width | 72 mm on 80 mm paper |
| Paper type | Thermal paper |
| Paper width | 79.5 mm plus or minus 0.5 mm (standard 80 mm rolls) |
| Max paper roll diameter | 80 mm |
| Paper supply | Drop-in paper load |
| Auto-cutter life | 1.5 million cuts |
| Print head life | 150 km |
| Emulation | ESC/POS |
| Interfaces | USB, Serial (RS232) and Ethernet, all fitted as standard |
| Drawer port | RJ11 / RJ12, 24V |
| Character sets | Alphanumeric 95, extended graphics 128 x 35 page, international 32 |
| Characters per line | Font A 42, Font B and C 56 |
| Sensor | Paper end sensor is optional on this model |
| Operating system support | Windows XP, 7, 8, 10 and 11, Linux, Mac |
| Dimensions | 191 x 140 x 143 mm |
| Operating conditions | 0 to 45 degrees C, 10 to 80 per cent humidity |
| Power supply | External adapter, DC 24V 2.5A, included |
| Colour | Black |
| Condition | New |
| Warranty | 24 Months Return to Base |
How it compares
| Printer | Print speed | Interfaces | Best for |
|---|
| Nexa PX610II (this printer) | 250 mm/s | USB, Serial, Ethernet | Getting all three interfaces for the least money |
| SAM4S HCUBE-102D | 230 mm/s | USB, Serial, Ethernet | Counters where the printer needs to go on a wall |
| Nexa PX700IV | 220 mm/s | USB, Serial, Ethernet | Tight benches. Roughly 25 per cent smaller footprint |
| Star TSP143III LAN | 250 mm/s | Ethernet only | Networked sites that want Star build and a 2 million cut head |
Who buys these
- Retail counters that just need a printer that works
- Cafes and takeaways, receipts at the counter
- Bars, coffee stations and dry prep benches, dockets over Ethernet
- Multi-till sites sharing one networked printer
- Older POS systems still running on serial
- Warehouses printing packing slips on 80 mm paper
- Anyone whose printer died this morning and needs to be trading again today
In the box
- Nexa PX610II thermal receipt printer (black)
- USB cable
- Power cable
- 24V 2.5A power supply
- 24 Months Return to Base warranty
Questions we get asked
Which interface should I use?
Whichever suits the site, because all three are there. USB if the printer sits beside the till. Ethernet if two terminals need to share it, or if the printer lives somewhere else entirely, say a bar or a coffee station. Serial if you are still running a POS that expects it. You are not committing to anything when you order, and changing your mind later costs you a cable.
Will it work with my POS software?
Most likely. It runs ESC/POS, the command set nearly every receipt printer and nearly every POS has used for years, and Nexa list drivers for Windows XP through 11, Linux and Mac. The exception is cloud POS platforms that only certify specific models. If yours is one of those, check its hardware list, or ring us on 1300 026 062 and we will look before you buy.
Does it come with cables and a power supply?
Yes: printer, USB cable, power cable and the 24V 2.5A adapter. You can have it printing over USB straight out of the carton. Ethernet and serial cables are not included.
Can I plug a cash drawer into it?
Yes, there is a 24V RJ11 / RJ12 port on the back. The POS tells the printer to kick the drawer open at the end of a sale, which is how most counters are wired. Most drawers with an RJ11 or RJ12 cable will work with it. Have a look at the
Nexa cash drawers, or call us and we will match one up.
Does it have a low paper warning?
Nexa list the paper end sensor as optional on this model, so do not count on one being fitted. In practice staff see the roll when they lift the lid. If your POS genuinely reads a paper-out signal, ring us on 1300 026 062 and we will confirm what is in the box before you order.
What paper does it take?
Standard 80 mm thermal rolls, dropped straight in, up to an 80 mm roll diameter. Printed width is 72 mm. Keep an eye on that 80 mm diameter if you buy in bulk: the usual 80 x 80 roll fits, anything bigger will not.
Can I use it as a kitchen printer?
Over Ethernet, yes, and plenty of sites run one that way. Just remember it prints on thermal paper. A docket sitting above a grill will go dark, and one filed in a drawer fades over a few months. For a hot kitchen an impact printer is the better tool. For a bar, a coffee station or a dry prep bench, this is fine.
How big is it, and how long will it last?
191 mm wide, 140 deep, 143 tall. Two parts wear out: the head, rated at 150 km of paper, and the cutter, at 1.5 million cuts. Those are the two numbers worth comparing when you are looking at budget printers, and the PX610II does well on both.
What is the warranty?
Two years, return to base, against manufacturing defects. Nexa also sell an advance replacement upgrade on this model, which is worth asking about if a dead printer would stop you trading. Give us a call on 1300 026 062 before you order if you want it.
You will need rolls
80 mm thermal, up to an 80 mm roll diameter. A box of 80 x 80 will keep it fed for a while.
Shop 80mm thermal rollsThe Nexa PX610II is an 80 mm direct thermal point of sale receipt printer in black, printing at up to 250 mm per second at 203 dpi with an effective print width of 72 mm. USB, Serial (RS232) and Ethernet interfaces are fitted as standard, along with a 24V RJ11 / RJ12 cash drawer port, ESC/POS emulation and driver support for Windows XP through 11, Linux and Mac. Paper is drop-in loaded, takes 79.5 mm wide rolls up to 80 mm in diameter, and the auto-cutter is rated for 1.5 million cuts against a 150 km print head life. The printer measures 191 x 140 x 143 mm and ships with a USB cable, power cable and 24V 2.5A external power adapter. The paper end sensor is optional on this model. It is covered by a 24 Months Return to Base warranty and is available from POS Sales Australia with delivery Australia-wide, or call 1300 026 062 for advice on POS compatibility.
Nexa PX610II · PX-610II · 80 mm thermal receipt printer · Direct thermal · 203 dpi · 250 mm/s · 72 mm print width · USB · Serial RS232 · Ethernet · ESC/POS · RJ11 / RJ12 24V drawer port · Drop-in paper load · 150 km print head · 1.5 million cut auto-cutter · 191 x 140 x 143 mm · Black · 24 Months Return to Base · POS Sales Australia
