Wi-Fi + Bluetooth + LAN + USB

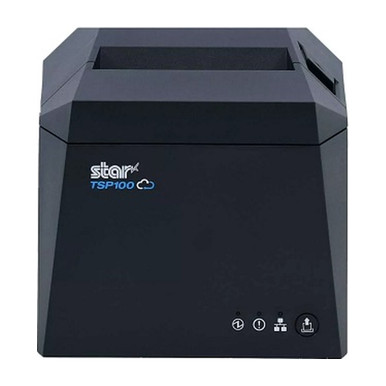

Star Micronics TSP143IV UEWB
The fully connected TSP143IV: dual-band Wi-Fi, Bluetooth, Ethernet and USB in one printer.
80mm paper width
Direct thermal
Up to 250 mm/s
Wi-Fi · Bluetooth · LAN · USB
CloudPRNT ready
The Star Micronics TSP143IV UEWB is the fully connected model in the TSP143IV thermal receipt printer range. Star describes it as the premium model in the series, and connectivity is the reason: dual-band Wireless LAN, Bluetooth, Ethernet and USB are all included in the one unit out of the box. It prints 80 mm receipts by direct thermal at up to 250 mm per second and 203 dpi, is Cloud Ready through Star CloudPRNT, and uses the same compact chassis, drop-in paper loading and internal power supply as the rest of the TSP143IV family. If you have been choosing between a wired printer and a wireless one, this is the model that removes the decision.
Why choose the TSP143IV UEWB
Four interfaces in one unitDual-band Wi-Fi on 2.4 and 5 GHz, Bluetooth, wired Ethernet and USB are all built in, so a single part number covers counter, tablet and wireless setups without ordering a different model.
Cloud ready with CloudPRNTConnects to any cloud application that supports Star CloudPRNT, so receipts and dockets print without a PC or print server sitting behind the counter.
Fast, sharp outputUp to 250 mm/s at 203 dpi, which keeps a queue moving through a lunch or dinner rush.
80 mm and 58 mm paperRuns standard 80 mm rolls as supplied and converts to 58 mm with the roll guide included in the box, so you can match whichever width you already stock.
Guillotine auto-cutterThe guillotine cutter is rated up to 2 million cuts, so the mechanism is specified for years of high-volume counter service rather than occasional use.
Internal power supplyThe power supply is built into the printer and the Australian power cables are included, so there is no external brick to mount or lose under the counter.
80 mm
Paper width (58 mm with guide)
2.4 / 5 GHz
Dual-band Wi-Fi
One printer, any counter layout
Most sites pick a receipt printer by how it will be connected, then get caught out when the layout changes. A cabled Ethernet printer is awkward once the counter moves, and a USB-only unit ties the printer to one terminal. The UEWB sidesteps that. Put it on the network over Ethernet today, move it to dual-band Wi-Fi when the counter shifts, or pair it straight to a tablet over Bluetooth for a pop-up or a market stall. Paper loading is drop-in and print, the cutter is a guillotine rated up to 2 million cuts, and the power supply is internal with Australian cables in the box, so installation is the printer, a power cable and whichever connection suits the site.
Specifications
| Brand / Model | Star Micronics TSP143IV UEWB |
| Print method | Direct thermal (no ink or ribbon) |
| Print speed | Up to 250 mm/s |
| Resolution | 203 dpi |
| Paper width | 80 mm standard, 58 mm with the included roll guide |
| Max roll diameter | 83 mm |
| Interfaces | Dual-band Wi-Fi (2.4 / 5 GHz), Bluetooth, Ethernet, USB-A (AOA), USB-C |
| Cloud technology | Star CloudPRNT, PromoPRNT via Star Micronics Cloud Services |
| Auto-cutter | Guillotine, rated up to 2 million cuts |
| OS support | iOS, Android, Windows, web / cloud |
| Power | Internal power supply, Australian cables included |
| Colour | Dark Grey |
| Warranty | 2 Years Return to Base |
| SKU | TSP143IV-UEWB |
How it compares
| Model | Connectivity | Generation | Best for |
| TSP143IV UEWB (this printer) |
Wi-Fi, Bluetooth, Ethernet, USB |
TSP143IV, current |
Sites needing wireless or tablet pairing, or one part number that covers every connection |
| Star TSP143IV |
Ethernet, USB |
TSP143IV, current |
Networked counters where every printer sits on a cable and wireless is not needed |
| Star TSP143IIIW |
Wi-Fi |
TSP143III, previous |
Established installs standardised on the TSP143III driver-based setup with Wi-Fi only |
| Star TSP143IIIBI |
Bluetooth |
TSP143III, previous |
Tablet tills that only ever pair over Bluetooth and need no network option |
What is in the box
- Star Micronics TSP143IV UEWB thermal receipt printer (dark grey)
- Roll guide for 58 mm paper
- Australian power cables (the power supply is built into the printer)
Frequently asked questions
Does the TSP143IV UEWB connect over Wi-Fi?
Yes. Dual-band Wi-Fi is built in and works on both 2.4 GHz and 5 GHz networks. This is the wireless model in the TSP143IV range, so no add-on adapter is required. If you want a wired-only printer instead, the standard TSP143IV connects over USB and Ethernet.
Can it also connect by Bluetooth?
Yes. Bluetooth sits alongside Wi-Fi, Ethernet and USB, which is what the UEWB part number denotes. That makes it a practical fit for tablet point of sale where you want the till to pair directly with the printer rather than route through the network.
What is CloudPRNT, and do I need a PC?
CloudPRNT is Star's technology for printing from cloud and web applications. If your point of sale runs in a browser or in the cloud, the printer collects and prints jobs itself, so no PC or print server is needed on site. If you run a traditional installed POS you can ignore CloudPRNT and connect over USB or Ethernet as normal.
What paper does it use?
Standard 80 mm direct thermal receipt rolls, up to 83 mm roll diameter. A roll guide is included so you can convert it to 58 mm if that is the width you already buy. Changing width is a physical guide, not a hardware swap.
Will this work with my POS software?
Star's TSP100 and TSP143 family is one of the most widely supported receipt printer ranges in retail and hospitality, and the TSP143IV supports iOS, Android, Windows and web or cloud applications. As the UEWB is the newest model in the range it is still worth confirming your platform lists it. Check your POS supported hardware page, or call POS Sales on 1300 026 062 and we will confirm before you order.
What is the difference from the standard TSP143IV?
Same printer mechanism, same chassis, different connectivity. The standard TSP143IV gives you USB and wired Ethernet. This UEWB model adds dual-band Wi-Fi and Bluetooth on top of Ethernet and USB. Choose the UEWB if you need a wireless or tablet-paired till, and the standard model if every printer sits on a network cable.
Do I need an external power brick?
No. The power supply is inside the printer and the Australian power cables are supplied, so there is nothing extra to mount under the counter.
What warranty does it come with?
Star Micronics covers the TSP143IV UEWB with a 2 Years Return to Base warranty. If a unit needs attention within that period, contact POS Sales on 1300 026 062 and we will arrange the return.
Where it works best
- Cafes, takeaways and hospitality venues printing dockets from a cloud or browser-based till
- Retail counters needing fast 80 mm receipts, where the till position may move later
- Tablet point of sale on iOS or Android, pairing over Bluetooth or printing across Wi-Fi
- Networked, multi-terminal sites connecting several printers over Ethernet or Wi-Fi
- Pop-ups, markets and events where running a network cable is not practical
- Venues replacing a TSP143III and wanting every connection option in one unit
Don't forget the paper
The TSP143IV UEWB uses standard 80 mm direct thermal receipt rolls, so keep a box on hand.
Shop 80mm thermal rolls
The Star Micronics TSP143IV UEWB (SKU TSP143IV-UEWB) is a dark grey desktop direct thermal receipt printer with dual-band Wi-Fi at 2.4 and 5 GHz, Bluetooth, Ethernet and USB connectivity, printing 80 mm receipts at up to 250 mm per second and 203 dpi. It supports 58 mm paper with the included roll guide, takes rolls up to 83 mm in diameter, has a guillotine auto-cutter rated up to 2 million cuts and an internal power supply with Australian cables, and is Cloud Ready through Star CloudPRNT with PromoPRNT available via Star Micronics Cloud Services. It is covered by a 2 Years Return to Base warranty and is available from POS Sales Australia with delivery Australia-wide, or call 1300 026 062 for advice on POS compatibility.
Star Micronics TSP143IV UEWB · SKU TSP143IV-UEWB · Desktop thermal receipt printer · Direct thermal · 203 dpi · 250 mm/s · 80 mm / 58 mm paper · Dual-band Wi-Fi 2.4 and 5 GHz · Bluetooth · Ethernet · USB · Star CloudPRNT · PromoPRNT · Guillotine auto-cutter · Internal power supply · Dark Grey · 2 Years Return to Base · POS Sales Australia
