Kitchen display system
SUNMI FLEX 3 22" Kitchen Video Display
A 22 inch Android touch screen built for the back of house: IP55, rated to 50 degrees, an aluminium body tested in oil bath conditions, and a panel that still reads a gloved or wet hand.
22 inch FHD touchIP55Gloved and wet touch60W PoEAndroid 130 to 50 C
The SUNMI FLEX 3 KDS is the kitchen build of the FLEX 3 platform, and it is a different machine from the counter version rather than the same screen with a label change. The body is aluminium alloy, rated IP55 against dust and water jets and tested by SUNMI at 70 degrees in oil bath conditions. It operates to 50 degrees ambient, ten above the standard model, which matters when a screen lives near a grill or above a pass. The 22 inch Full HD IPS panel runs at 400 nits behind an anti-fingerprint coating, and the touch layer is specified to work through gloves and to keep reading with oil or water sitting on the glass.
Why choose the KDS build
Works with wet and gloved handsThe touch panel is specified to read through gloves and to keep working with oil or water sitting on the glass, which is the difference between a kitchen screen and an office one.
IP55 and a 70 degree oil bathRated IP55 against dust and water jets, in an aluminium alloy body SUNMI tests at 70C in oil bath conditions, so it survives the wipe-downs and the air above a fryer.
Runs to 50 degrees CAn operating ceiling of 50C, ten degrees above the standard FLEX 3. A screen mounted near a grill or a pass sits in air that an ordinary display is not rated for.
60W PoE at full brightnessOne network cable carries data and power and still drives the panel at its full 400 nits, so a screen on an arm over the pass needs no power point behind it.
Mount it anywhereVESA 100 x 100 for wall brackets and monitor arms, in a body 29.8 mm deep, which is what lets it go above a bench where there is no room for a terminal.
Android 13 with a real processorSUNMI OS 4.0 on Android 13 with a Qualcomm octa-core to 2.4GHz, 4GB of RAM and 64GB of storage, so the KDS software runs on the screen itself.
What the board actually shows
Behind the screen is a Qualcomm octa-core processor to 2.4GHz with 4GB of RAM and 64GB of storage running SUNMI OS 4.0 on Android 13, so the kitchen display application runs on the unit itself rather than on a box hidden under a bench. It takes 60W Power over Ethernet at full brightness, which means one cable to a screen on an arm, and mounts on a standard VESA 100 x 100 pattern. Two gigabit RJ45 ports, a serial port, two USB Type-A ports and two 3W speakers cover the rest. Backed by a 12 Months Return to Base warranty and supported in Australia by POS Sales on 1300 026 062.
What it changes in the kitchen

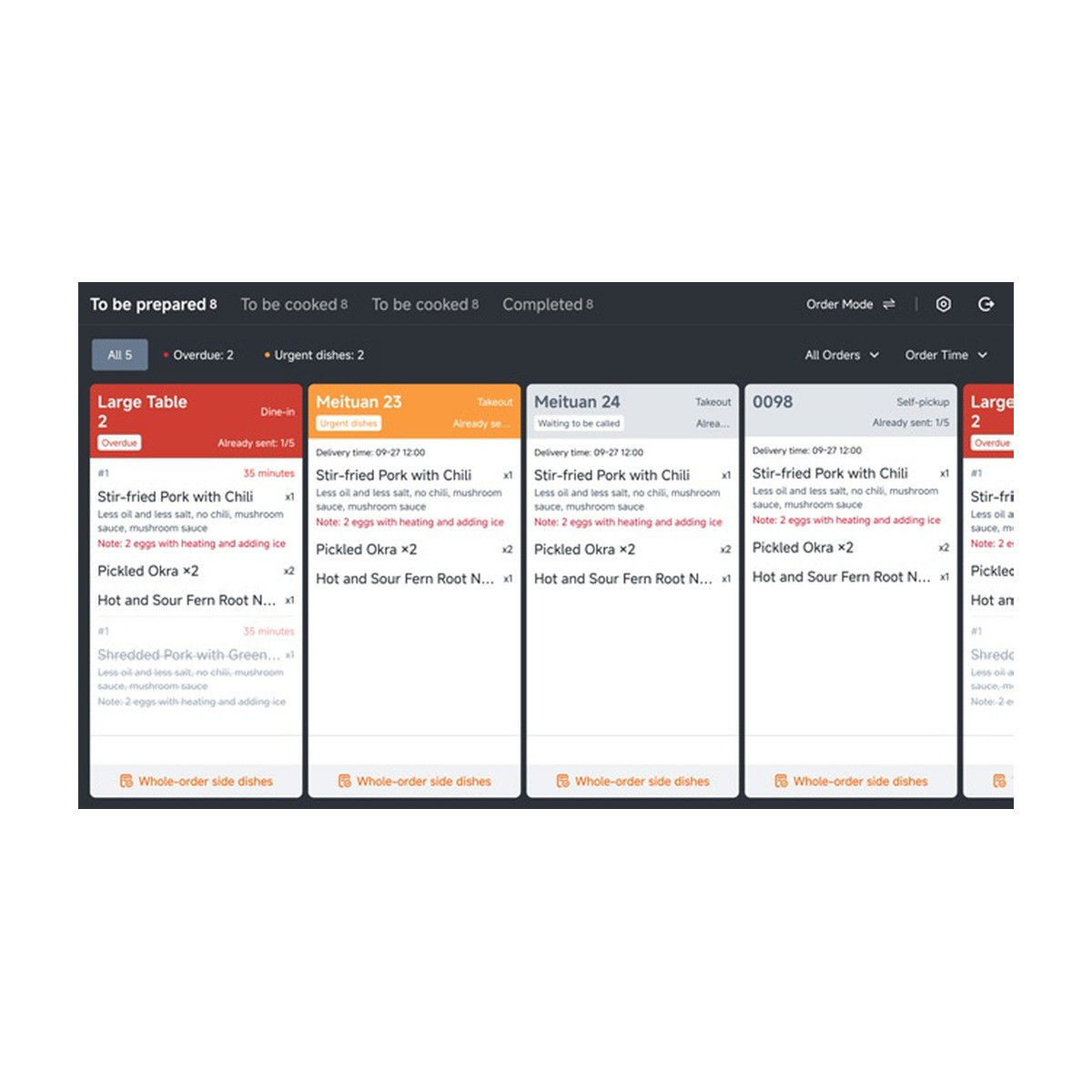

- The pass and the line. Orders arrive the moment they are rung up, sequenced automatically, with custom notes highlighted. Nobody walks a docket from the front counter to the kitchen, and nothing is lost between the two.
- Split by section. Show the board by dish category or by workstation, so grill, fryer and cold larder each see their own work rather than every ticket on one screen.
- Bump and notify. Marking an item complete can notify the front of house, which closes the loop on collection and keeps staff off the radio during a rush.
Full specifications
| Brand | SUNMI |
| Model | FLEX 3 22 inch KDS |
| SKU | P11050010 |
| Product model | F9J2A |
| Product type | Android kitchen display system terminal |
| Display | 22 inch FHD 1920 x 1080 IPS, 400 nits |
| Touch | Capacitive multi-touch with anti-fingerprint coating, operates with gloves and wet hands |
| Operating system | SUNMI OS 4.0, based on Android 13 |
| Processor | Qualcomm octa-core, up to 2.4GHz |
| Memory | 4GB RAM |
| Storage | 64GB ROM |
| Expandable storage | 1 x MicroSD (TF card), up to 1TB |
| Wi-Fi | 5GHz and 2.4GHz, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 with BLE |
| Network | Gigabit LAN, 2 x RJ45, plus 1 x PoE port |
| PoE | 60W PoE support at full 400 nit brightness |
| Ports | 2 x USB 2.0 Type-A, 1 x Type-C power, 1 x Type-C debug, 1 x RS485/RS232, 1 x audio jack. No USB extension on the KDS build. |
| Audio | 2 x 3W speakers |
| Button | 1 x power button with fingerprint ID |
| Mounting | VESA 100 x 100, wall bracket or monitor arm |
| Power adapter | Input AC 100-240V, output 20V 3.5A |
| Dimensions | 511 x 303 x 29.8 mm |
| Body | Aluminium alloy, tested to 70C oil bath conditions |
| Ingress protection | IP55 |
| Operating temperature | 0 C to 50 C |
| Storage temperature | -20 C to 60 C |
| Humidity | 5 percent to 95 percent, non condensing |
| Optional accessories | PoE module, third-party VESA wall mount or arm |
| Warranty | 12 Months Return to Base |
How the KDS differs from the counter FLEX 3
| | FLEX 3 22 inch KDS (this screen) | FLEX 3 18.5 inch interactive display |
|---|
| Built for | Back of house, the pass and the line | The counter, self-ordering and self-checkout |
| Ingress protection | IP55 | IP54 |
| Operating temperature | 0 C to 50 C | 0 C to 40 C |
| Touch | Gloves and wet hands supported | Standard capacitive multi-touch |
| Body test | Aluminium alloy, 70C oil bath conditions | Metal body, standard retail duty |
| Expansion | No USB extension on this build | 4 x Micro USB for NFC, MSR, scanner and camera modules |
| Contactless | Not fitted | NFC through the screen |
| Screen | 22 inch | 18.5 inch |
Before you order
- Confirm the KDS app. This is hardware only. The kitchen display software comes from your point of sale platform, so check that your POS publishes an Android KDS app, or call us and we will check for you.
- Decide the mount. Nothing is included. It takes a third-party VESA 100 x 100 wall bracket or monitor arm. Measure the position and allow for the cable run before the unit arrives.
- Check your switch for PoE. Running it over one cable needs a PoE switch or injector with enough headroom for a 60W load. If the site is not PoE, plan a power outlet within reach of the 20V adapter instead.
In the box
- SUNMI FLEX 3 22 inch KDS display
- Power adapter, output 20V 3.5A
- Quick start guide
Frequently asked questions
How is the KDS different from the standard FLEX 3 display?
It is built for the back of house rather than the counter. The KDS build is rated IP55 instead of IP54, runs to 50C instead of 40C, uses an aluminium body SUNMI tests at 70C in oil bath conditions, and its touch panel is specified to work through gloves and with water or oil on the glass. It also drops the Micro USB expansion ports the counter version carries, because a kitchen screen is not hosting card readers and scanners.
Does it come with kitchen display software?
No. This is the hardware: an Android 13 terminal with a 22 inch touch screen. The KDS application comes from your point of sale platform, and most of the major packages publish an Android kitchen display app. Tell us which POS you run and we will confirm it before you order.
Can it really be used with gloves on?
Yes, that is a published specification rather than a general claim. SUNMI states the panel supports gloved touch and keeps operating with residual oil or water on the surface, which is why it suits a pass where staff are not going to stop and dry their hands.
What does 60W PoE get me?
One cable. The unit takes power and data from a single RJ45 run and still drives the screen at its full 400 nits, so a display on an arm above a bench does not need a power outlet nearby. You need a PoE capable switch or injector with the headroom to deliver it, and SUNMI's PoE module where the installation calls for it. Call us on 1300 026 062 and we will check your switch against the load before you order.
How do I mount it?
On a standard VESA 100 x 100 pattern, using a third-party wall bracket or monitor arm. SUNMI lists exactly that for the KDS: there is no bespoke stand in the range for it, which is normal for a kitchen screen that wants to be off the bench and out of the way. The FLEX 3 Lite stands we stock are for the counter displays, not for this one.
Is the screen touch or just a display?
Touch. It is a capacitive multi-touch panel, which is what lets staff bump items and move tickets directly on the screen rather than using a bump bar. The anti-fingerprint coating is there because the glass gets handled constantly and wiped down often.
What is the warranty?
12 Months Return to Base. Return to base means a faulty unit comes back to us for assessment and repair or replacement rather than an engineer attending site. Call POS Sales on 1300 026 062 if you are rolling out several and want to talk about cover.
Will it survive over a fryer or a grill?
Within its rating. IP55 covers dust and water jets, the body is tested in 70C oil bath conditions, and it operates to 50C ambient. That is built for a working kitchen. It is not rated for direct heat, so mount it clear of the equipment rather than above the hot zone itself.
The SUNMI FLEX 3 22 inch Kitchen Video Display (SKU P11050010, product model F9J2A) is the KDS build of SUNMI's FLEX 3 platform, intended for the back of house rather than the counter. It carries a 22 inch Full HD 1920 x 1080 IPS capacitive multi-touch panel at 400 nits with an anti-fingerprint coating and support for gloved and wet-hand operation, in an aluminium alloy body rated IP55 and tested by SUNMI under 70C oil bath conditions. It runs SUNMI OS 4.0 on Android 13 with a Qualcomm octa-core processor to 2.4GHz, 4GB of RAM and 64GB of storage, expandable by MicroSD to 1TB. Connectivity covers Wi-Fi on 2.4 and 5GHz, Bluetooth 5.0 with BLE, two RJ45 gigabit Ethernet ports and a PoE port supporting 60W at full brightness, plus 2 x USB 2.0 Type-A, a Type-C power port, a Type-C debug port, RS485/RS232 and an audio jack. There are two 3W speakers and a power button with fingerprint ID. The unit measures 511 x 303 x 29.8 mm, mounts on VESA 100 x 100, and operates from 0 C to 50 C. It carries a 12 Months Return to Base warranty.
SUNMI FLEX 3 22 inch Kitchen Video Display, part number P11050010, supplied and supported in Australia by POS Sales, 1300 026 062. The counter-facing model in the same range is the SUNMI FLEX 3 18.5 inch interactive touch display (P11050015), which is a separate product with its own ratings and expansion options.
Brand:
SUNMI
Model:
FLEX 3 22 inch KDS
Product Model:
F9J2A
Product Type:
Kitchen Display System
OS:
SUNMI OS 4.0 (based on Android 13)
Processor:
Qualcomm octa-core, up to 2.4GHz
RAM:
4GB
ROM:
64GB
Expandable Storage:
MicroSD (TF card) up to 1TB
Main Display:
22" FHD 1920 x 1080 IPS, 400 nits
Touch:
Capacitive multi-touch, gloved and wet hand operation
Wi-Fi:
2.4GHz and 5GHz, 802.11 a/b/g/n/ac
Bluetooth:
BT 5.0 with BLE
Network:
2 x RJ45 Gigabit Ethernet, 1 x PoE port
PoE:
60W at full 400 nit brightness
Ports:
2x USB-A 2.0, 1x Type-C power, 1x Type-C debug, RS485/RS232, audio jack
Speaker:
2 x 3W
Security:
Fingerprint ID on power button
Body Material:
Aluminium alloy, 70C oil bath tested
Mounting:
VESA 100 x 100
Dimensions:
511 x 303 x 29.8 mm
Power Adapter:
Input AC 100-240V, output 20V 3.5A
Protection:
IP55
Operating Temperature:
0 to 50 degrees C
Colour:
Black
Warranty:
12 Months Return to Base
