Corded hands-free presentation 1D/2D barcode scanner that captures codes as fast as you present them, built for the retail counter.
1D & 2D Area ImagerHands-Free PresentationCorded USBIP52 · 1.5 m drop3 Years Return to Base

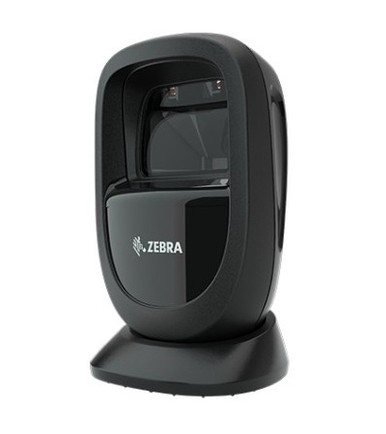

The Zebra DS9308 is a corded 1D and 2D barcode scanner built for the retail counter, where staff present items to it for fast, hands-free checkout, then lift it out of its stand for handheld scanning of bulky or fixed items. Powered by Zebra's PRZM Intelligent Imaging, an 800 MHz processor and a megapixel sensor, it captures printed barcodes and codes shown on a phone screen, including damaged, dense and low-contrast labels, as fast as they are presented. Supplied as a complete USB kit with a 3 year (36 month) Return to Base warranty.
Why choose the DS9308
Reads 1D and 2D Decodes QR, Data Matrix, PDF417 and Digimarc from paper, phones and screens, even damaged or poorly printed codes.
Hands-free and handheld Present items to it in the stand for hands-free checkout, or pick it up to scan bulky and fixed items.
Up to 50% faster PRZM Intelligent Imaging and a wide field of view capture codes omnidirectionally, with no aiming.
Reads hard-to-scan codes Decodes tiny, high-density, damaged and low-contrast barcodes that trip up basic scanners.
Corded USB, always ready Plug-and-play USB that types straight into your POS, with no batteries to charge and nothing to pair.
3-year warranty Backed by a 36 month Return to Base warranty for long-term peace of mind.
50%
faster swipe speed
IP52
dust & spill sealing
1.5 m
drop to concrete
3 yr
Return to Base
How it fits your workflow
Sit the DS9308 on the counter and present items to it for fast, hands-free checkout, with no need to aim or pull a trigger. Lift it out of the stand to scan bulky or fixed items by hand. It connects to your PC or POS over USB and behaves like a keyboard, so scans drop straight into your point-of-sale, web form or spreadsheet with no extra software to install.
Specifications
Brand
Zebra
Model
DS9308 (DS9300 Series)
SKU / MPN
DS9308-SR4U2100AZW
Scanner type
1D/2D area imager, hands-free presentation and handheld
Symbologies
1D, 2D (QR Code, Data Matrix, PDF417, Aztec), Digimarc, DotCode, OCR, postal
Does the DS9308 read QR codes and barcodes on phone screens?
Yes. It is a 2D area imager, so it reads 1D and 2D codes including QR Code, Data Matrix and PDF417, and it captures codes displayed on a phone or tablet screen, such as mobile coupons, loyalty cards and digital tickets.
Is it hands-free or handheld?
Both. The DS9308 sits in its included stand for hands-free presentation scanning, where you simply present an item to it. You can also lift it out and use it as a handheld scanner for larger or fixed items.
Does it need charging or batteries?
No. The DS9308 is a corded scanner that draws power over its 2 m USB cable, so it is always ready with nothing to charge or pair. If you need a cordless option, see the Zebra DS2278 in the comparison above.
Will it work with my POS software?
In most cases, yes. The DS9308 connects over USB as an HID keyboard-wedge, so it types scanned data straight into the active field and works with the majority of POS and inventory systems with no driver. Some cloud POS platforms certify only specific models, so confirm against your POS provider's supported-hardware list, or call our team on 1300 026 062 before you buy.
How do I set it up?
Plug the 2 m USB cable into your POS terminal or PC and the scanner powers on, ready to scan in its default USB HID mode. To change settings such as a prefix, suffix or a specific POS mode, scan the configuration barcodes in the quick start guide. If you are unsure which mode your POS needs, contact POS Sales for help.
What warranty does it come with?
The Zebra DS9308 is covered by a 36 month (3 year) Return to Base warranty.
Where it works best
High-volume retail checkout: hands-free presentation scanning keeps queues moving as staff slide items past the scanner without picking it up.
Hospitality and quick service: reads loyalty cards, vouchers and mobile order codes straight from a customer's phone.
Pharmacy and convenience: decodes the tiny, dense barcodes on medication and small packaged goods first time.
Click-and-collect and returns desks: scan order confirmations from a screen and product labels from the shelf with one device.
Building a checkout? Pair the DS9308 with a receipt printer to complete your point of sale.
The Zebra DS9308 (SKU DS9308-SR4U2100AZW) is a corded USB 1D/2D hands-free presentation barcode scanner from Zebra's DS9300 Series, supplied as a kit with a presentation stand and 2 m USB cable. It uses PRZM Intelligent Imaging with an 800 MHz processor and megapixel sensor to read 1D, 2D, QR, Data Matrix, PDF417, Digimarc and DotCode symbologies, including barcodes shown on phone screens, scanning omnidirectionally up to 50% faster than competing scanners. Rated for 1.5 m drops to concrete, IP52 sealed and backed by a 36 month Return to Base warranty from POS Sales Australia. Order online or call 1300 026 062.
Brand: Zebra · Model: DS9308 · SKU: DS9308-SR4U2100AZW · Type: Hands-free presentation 1D/2D imager · Codes: 1D and 2D · Connectivity: USB (corded) · Stand: Included · Warranty: 36 Months Return to Base
